StarFilter Pro Version 1 8BF Filter Plug-in Help and Support

StarFilter Pro version 1 is an older product that has been replaced by a newer version and is no longer for sale.

Click here to learn more about the latest version


Getting Started

When you first start StarFilter Pro, it analyzes the content of your image to determine where the highlights are. It classifies their brightnesses and colors, displays the image, and allows you to manipulate the controls.

The choices you make by changing the controls determine how many effects are drawn on the image highlights and how they will appear. You will see the preview image update immediately upon making control changes.

A typical run of StarFilter Pro goes something like this:

  • Open the image document you want to work on in your editor.
  • From the editor's menu, start StarFilter Pro.
  • Choose the Effect type you'd like to add to your image, e.g., North Star.
  • Adjust the Threshold control to make effects appear on only the brighter highlights.
  • Adjust the Intensity, Length, and other controls to make your image look simply spectacular.
  • Press the [ OK ] button to commit the changes back to your image in your editor.

More detailed descriptions of what the controls do can be found below, and don't forget to look over our list of Frequently Asked Questions.

If you get stuck or simply want to ask a question, please feel free to contact us at Support@ProDigitalSoftware.com - don't worry, we're here to help!


Control Descriptions

When running the plug-in, you may hover your mouse over a control for a few seconds to see a quick description of what the control does and any keyboard shortcut that is assigned to the control.

Keyboard Shortcuts: [ F1 ] will pop open this online Help and Support Page

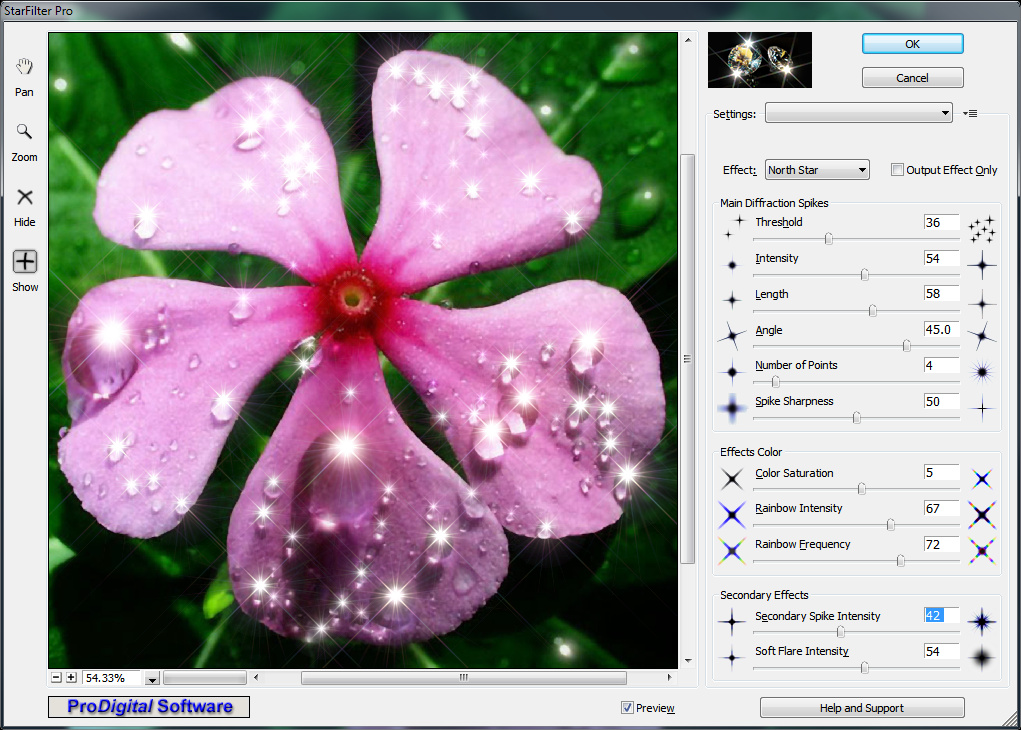

StarFilter Pro Puts These Controls at Your Fingertips:


Help and Support

Click on the [ Help and Support ] button or the small image near the top-right with the three bright 6 point star effects in it to see the About dialog, which provides the StarFilter Pro version information as well as links to help and other resources.


Panning Tool (Hand Icon)

Keyboard Shortcuts: [ P ] selects the Pan (drag) scrolling mode, [ Alt ] and [ Ctrl ] modify operation

After selecting Panning tool, the cursor is changed to a "hand", which can be used to click and drag in the viewport to move the image to areas that are beyond the edges of the current display. The Alt key will momentarily change modes to allow you to zoom out one level. Holding down the Ctrl key then clicking the mouse will allow you to zoom in one level.


Zoom Tool (Magnifier Icon)

Keyboard Shortcuts: [ Z ] selects the Zoom display mode, [ Alt ] modifies operation

After selecting the Zoom tool, the cursor is changed to a "magnifying glass", which can be used to change the zoom level in the display viewport. A single click will zoom in one level, or out one level if the Alt key is held down. This cursor can also be used to select an area with which to fill the viewport. Holding down the Alt key then clicking the mouse will allow you to zoom out one level.


Hide Effects Tool (X Icon)

Keyboard Shortcuts: [ x ] selects the Effect Hiding mode, [ Alt ] modifies operation

After selecting the X tool, the cursor is changed to an "X crosshair", which can be used to disable spike/flare effects that have been placed on highlights that you don't want the effects rendered on. A single click over a light source center will disable the effect. If you click and drag you can select an entire area in which to disable effects. Holding down the Alt key then clicking the mouse will allow you re-show accidentally hidden effects.


Show Effects Tool (+ Icon)

Keyboard Shortcuts: [ + ] selects the Effect Revealing mode, [ Alt ] modifies operation

After selecting the + tool, the cursor is changed to a "+ crosshair", which can be used to show spikes on light sources that fall below the selected threshold or have previously been hidden. If you click and drag you can select an entire area in which to affect the spike effects. Holding down the Alt key then clicking the mouse will allow you to re-hide accidentally revealed effects.


Preview Display Viewport

Keyboard Shortcuts: [ D ] selects the display, then [ Arrows ] and [ Pg Up ] / [ Pg Dn ] scroll, [ Ctrl ] modifies scrolling; [ Home ] and [ End ] jump to corners

The effects to be rendered in the image are previewed in the preview display viewport, and are updated upon any control change. When you like what you see, press the [OK] button to commit the StarFilter Pro effects back to the image in your editor.


Zoom Controls

At the bottom of the preview display viewport are several controls that will allow you to select a zoom level at which to view the preview of the rendered effects. The current level of zoom is displayed as a percentage.

Keyboard Shortcuts: [ Ctrl + ] zooms in, [ Ctrl - ] zooms out

The [-] and [+] buttons at the left will zoom the display out and in respectively by one pre-defined step.

Keyboard Shortcuts: [ V ] pops up the zoom selection menu, then [ Up Arrow ] and [ Down Arrow ] and [ Enter ] to change

Mouse Shortcuts: Right Click in the preview display pops up the zoom selection menu, then Left Click on an entry to change

The [v] button just to the right of the zoom percentage display pops up a zoom selection menu, which you can use to choose from a variety of presets.


Settings Selector

Keyboard Shortcuts: [ T ] activates the Settings drop-down, then [ Up Arrow ] and [ Down Arrow ] to change

"Default Settings" are defaults provided for first use of the plug-in. "Initial Settings" return all controls to the saved settings from the last plug-in run, which are loaded by default when the plug-in starts

Allows you to select pre-defined sets of parameters. Parameter sets can be saved via the Save, Load and Delete Parameter Sets menu icon just to the right of the Settings selector and described below.


Save, Load, and Delete Parameter Sets Menu (Small Arrow and 4 Bars Icon)

Keyboard Shortcuts: [ M ] activates the file access menu, then [ Up Arrow ] and [ Down Arrow ] to change, [ Return ] to do

Allows you to save, load, or delete named sets of parameters in the parameter storage area on your hard drive. The "Delete Settings" choice is available after you have selected a named set via the Settings control.


Effect Selector

Keyboard Shortcut: [ : ] activates the drop-down, then [ Up Arrow ] and [ Down Arrow ] to change

Pro Edition Only - This selector allows you to choose from a number of pre-programmed effects: Standard Star, Star Burst, Hyper Star, etc. Some of these effects emulate standard glass filters and some are unique to this plug-in.


Output Effect Only Checkbox

Keyboard Shortcut: [ O ] disables / enables inclusion of the original image with the effect

Pro Edition Only - This checkbox allows you to see and generate the effect alone or combined with the original image. It is useful if you have duplicated the image as a new layer and are planning to creatively combine the effects yourself using, for example, the layer mixing features of the image editor.


Threshold Slider/Edit Box

Keyboard Shortcuts: [ H ] selects this control, then [ Up Arrow ] and [ Down Arrow ] change values, [ Ctrl ] causes change by larger amount

This slider / edit box combination allows you to choose more or fewer of the automatically detected light sources in the image for display of effects. With the control to the left, only the brighter light sources will be shown. The intention is that you get close to the right set of light sources showing effects by using the Threshold slider first, then use the Hide and Show tools to make exactly the set of effects you want shown.


Intensity Slider/Edit Box

Keyboard Shortcuts: [ I ] selects this control, then [ Up Arrow ] and [ Down Arrow ] change values, [ Ctrl ] causes change by larger amount

This slider / edit box combination allows you adjust the brightness at which the effects are rendered. Often a subtle level of effects can make a most powerful impact.


Length Slider/Edit Box

Keyboard Shortcuts: [ L ] selects this control, then [ Up Arrow ] and [ Down Arrow ] change values, [ Ctrl ] causes change by larger amount

This control sets the length of the main and secondary spikes as well as the size of the Soft Flare.


Angle Slider/Edit Box

Keyboard Shortcuts: [ A ] selects this control, then [ Up Arrow ] and [ Down Arrow ] change values, [ Ctrl ] causes change by larger amount

This control sets the angle of the spikes as they emanate from the light source. 0 degrees is straight up, and positive values rotate the effects clockwise.


Number of Points Slider/Edit Box

Keyboard Shortcuts: [ N ] selects this control, then [ Up Arrow ] and [ Down Arrow ] change values, [ Ctrl ] causes change by larger amount

This control sets the number of primary diffraction spikes that radiate from the light source. Odd numbers, though not possible optically, are provided to give you extra creative control. Some of the filter effects do interesting things with differing numbers of points. The Religious Cross effect, for example, adds points so as to make a fuller cross.


Spike Sharpness Slider/Edit Box

Keyboard Shortcuts: [ S ] selects this control, then [ Up Arrow ] and [ Down Arrow ] change values, [ Ctrl ] causes change by larger amount

This control allows you to match the sharpness of the subject material in the image by making the spikes more crisp or fuzzy, yielding a very natural looking result when properly matched to the image.


Color Saturation Slider/Edit Box

Keyboard Shortcuts: [ C ] selects this control, then [ Up Arrow ] and [ Down Arrow ] change values, [ Ctrl ] causes change by larger amount

This control sets the overall amount of color from the light source that will be rendered in the effects. It affects spikes, secondary spikes, and soft flare. The rainbow effect can be controlled separately with the Rainbow Intensity control, listed below.


Rainbow Intensity Slider/Edit Box

Keyboard Shortcuts: [ R ] selects this control, then [ Up Arrow ] and [ Down Arrow ] change values, [ Ctrl ] causes change by larger amount

Pro Edition Only - This control sets the amount of the repeating multicolored "rainbow" pattern in the primary and secondary spikes. Some solid color can remain in the spikes due to the detected color of the light source even with this control turned all the way down.


Rainbow Frequency Slider/Edit Box

Keyboard Shortcuts: [ F ] selects this control, then [ Up Arrow ] and [ Down Arrow ] change values, [ Ctrl ] causes change by larger amount

Pro Edition Only - This control sets the rate at which the multicolored "rainbow" pattern repeats. Optically, higher focal length lenses often produce a more gradually repeating pattern, and you can use this control to closely match optical results.


Secondary Spike Intensity Slider/Edit Box

Keyboard Shortcuts: [ E ] selects this control, then [ Up Arrow ] and [ Down Arrow ] change values, [ Ctrl ] causes change by larger amount

Pro Edition Only - This control sets the intensity of the additional faint and fuzzy pseudo-random spikes near the light source. To some extent these secondary spikes can seem to be a glow, especially if the Sharpness is turned down.


Soft Flare Intensity Slider/Edit Box

Keyboard Shortcuts: [ Y ] selects this control, then [ Up Arrow ] and [ Down Arrow ] change values, [ Ctrl ] causes change by larger amount

This control sets the intensity of the soft glow around a light source. It can provide a cleaner, smoother overall appearance than the Secondary Spikes.


Preview Checkbox

Keyboard Shortcut: [ W ] toggles preview on / off

This checkbox allows you to see your image alternately with or without the generated effects. Toggling the preview off/on is a good way to gauge the effects being rendered by StarFilter Pro.


Resizable Dialog

You can grab the diagonal dialog resize control at the lower-right corner, or indeed any side or corner of the dialog (Windows only), to resize it per your preference. Note that larger dialog sizes require more computer resources to render preview displays, so smaller sizes may yield faster display updates. Once you have run the dialog successfully (i.e., exited via the [OK] button) StarFilter Pro will remember where you left it and what size it was and start there next time you run it.


To Configure The New Version Check Interval

Open the About dialog by clicking the [Help and Support] button or the small banner icon near the top with the three star effects on it, then click the [Configure Options] button. This will allow you to set the interval in days between checks for new releases online. You can set the value to 0 to have the software check for a newly released version every time you run it, and you can disable the online check entirely if you prefer by unchecking the checkbox. Only activated software will check for new releases.


Frequently Asked Questions


How do I run StarFilter Pro once it is installed?

Because it is a filter plug-in, once you have an image open you can find StarFilter Pro in these places:

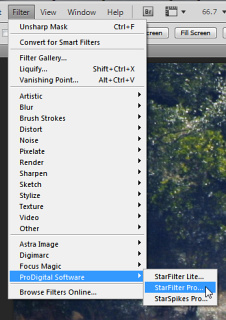

  • From the Adobe® Photoshop® menu choose Filter > ProDigital Software > StarFilter Pro...
  • From the Corel® PaintShop® menu choose Effects > Plug-ins > ProDigital Software > StarFilter Pro...
  • In Irfan View, press Ctrl-K, then add the plug-in to the list. After that, choose StarFilter Pro...

What's the difference between StarFilter Pro and StarFilter Lite?


Is StarFilter Pro or StarFilter Lite the right plug-in for astroimages?

No. If you are an astrophotographer and looking for a plug-in to add star diffraction spikes to your astroimages then you will likely be more interested in our StarSpikes Pro 3 product.   Please click here to go to our StarSpikes Pro 3 main page.


How are the StarFilter plug-ins different from the the StarSpikes Pro plug-in?

StarFilter Lite and StarFilter Pro (plug-ins for general photography) are optimized to quickly find highlights in brighter (e.g., daytime) images; to render large, visually significant effects; and to interact with you somewhat differently than StarSpikes Pro: StarFilter Lite and StarFilter Pro have a separate Threshold control and a "Show" (+) tool that will allow you to reveal effects on highlights (as exceptions) that are not above the Threshold you have chosen. This allows you to very quickly get close to your desired number of highlight effects, then fine tune the result with the Show (+) and Hide (x) tools. Besides Standard Star effects, StarFilter Pro also offers 6 additional effects: Star Burst, Hyper Star, Hollywood Star, North Star, Vector Star, and Religious Cross. These match the effects available with glass filters available for general photography.

StarSpikes Pro (the plug-in for astroimages) is highly optimized to detect the positions and sizes of stars in astronomical photos - to subpixel accuracy - as people often scrutinize such imagery very closely. It also goes to extra effort to differentiate stars from bright nebulae. StarSpikes Pro offers only what we term a "Standard Star" effect, in which the points are evenly distributed around the 360 degree circle (astronomers normally choose 4 points). Lastly, StarSpikes Pro renders a somewhat greater difference in effect intensity between bright and dim stars to add a greater sense of depth.


Is StarFilter Pro compatible with Paintshop Pro?

Yes. We have crafted the StarFilter Pro plug-in to be compatible with any modern editor that supports Adobe® Photoshop® compatible 8BF style filter plug-ins.


Can I add spikes to only the light sources I want?

Absolutely! Several different ways, in fact:

  1. The plug-in chooses light sources to spike (and how much to spike them) based on detected brightness and the Threshold setting you choose.
  2. You can deselect specific effects in the image by using the X tool while running the plug-in.
  3. If an effect is not shown at a particular Threshold setting, you can make it show with the + tool.
  4. You can make a selection in your editor prior to running the plug-in and only the light sources that are selected will receive spikes.

Do you take PayPal?

Yes, as well as credit cards. Look for the PayPal logo during the checkout process, after you have entered your billing information.


Am I obligated to buy the software if I install it?

No, the free trial is completely obligation-free, and the plug-in is fully functional during the trial period. We're sure that once you see the dazzling effects that you can create with the plug-in you'll want to add it to your set of tools for making great images.


Don't see your question here?

You may eMail us at: Contact@ProDigitalSoftware.com

Thank you in advance for your comments!
